Description
dji fpv goggles v2 patch antenna Lumenier AXII HD 2 Patch Visor 5.8GHz Antenna Combo Set for DJI FPV Go – RC PapaIncludes 1x Lumenier AXII HD 2 5. 8GHz Patch Visor Antennas (LHCP) 2x Micro AXII HD 2 Stubby Antennas This is the Lumenier AXII HD 2 Patch Visor 5. 8GHz Antennas Combo Set for DJI Digital HD FPV Goggles. A set of circular polarized, directional antennas specifically made for the DJI FPV Goggles. Designed to provide long range 5. 8Ghz video reception in a compact form factor. Building on the success of the original AXII HD antennas, the new AXII HD 2
Includes

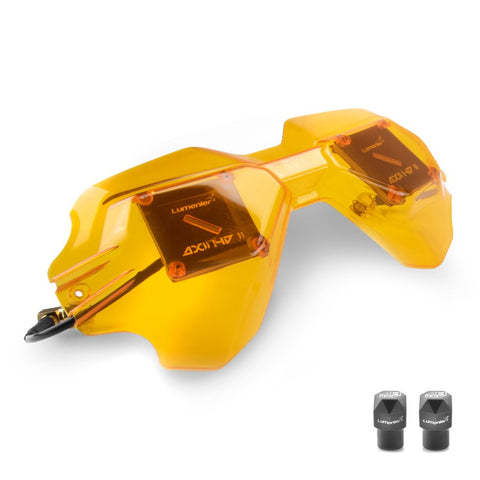

- 1x Lumenier AXII HD 2 5.8GHz Patch Visor Antennas (LHCP)
- 2x Micro AXII HD 2 Stubby Antennas
This is the Lumenier AXII HD 2 Patch Visor 5.8GHz Antennas Combo Set for DJI Digital HD FPV Goggles. A set of circular polarized, directional antennas specifically made for the DJI FPV Goggles. Designed to provide long range 5.8Ghz video reception in a compact form factor.
Building on the success of the original AXII HD antennas, the new AXII HD 2 improve on both looks and performance. Finally, a high-quality set of antennas designed as a direct replacement and upgrade for your stock DJI antennas for the DJI Digital HD FPV Goggles. The AXII HD 2 antennas were designed from the ground up to be a perfect match for the DJI goggles. The AXII HD 2 antennas feature a custom molded semi-transparent visor with embeded antennas inside. This provides a low profile, sleek looking, direct connect RP-SMA antenna solution, and all this with improved performance.
The Lumenier AXII HD 2 5.8GHz Patch Antenna offers you the highest performance you can get from a high gain mini patch antenna designed for DJI Digital HD FPV. The Lumenier AXII HD Patch has a high 8.4 dBiC gain for long range flying and excellent penetration through objects compared to standard omnidirectional FPV antennas. It also features an incredible 92% efficiency (most mini patch antennas are below 75%), which means you get amazing performance and the best picture in your video goggles. Lumenier, designed in collaboration with renowned FPV antenna designer Hugo of TrueRC, brings you the Lumenier AXII HD 5.8GHz Patch Antenna.
Form Fitting Design for DJI HD FPV Goggles
Not only do the AXII HD 2 Antennas have awesome performance, but they do it in an ultra-compact form factor with a custom injection-molded polycarbonate visor. This makes the antenna an ideal choice for your DJI HD system. Each Patch antenna comes pre-installed inside the visor making install a breeze. Since it is so small and compact you don't have to worry about bumping into things while wearing these antennas like other larger and heavier high gain antennas. Super easy to store in your travel bag as well, and no need to remove the antennas while traveling.
The injection molded polycarbonate case of the Micro AXII 2 Stubby fully protects the antenna elements inside allowing for easy, worry-free storage. The case is sealed with an ultra-sonic weld and is shock-resistant to protect from accidental drops.
High Gain & Wide Beam Width
Generally, with such a high gain antenna you would have to sacrifice the effective FOV (field of view) or beam width, but with the AXII HD 2 Patch Antenna you get the best of both worlds: High gain and wide beam width! The AXII HD Patch will give you 8.4dBiC gain while still covering over 76 degrees of horizontal beam and 68 degrees vertically. This means the antenna is more forgiving and can still give you a clear picture even if you aren't pointed exactly at your aircraft or transmitter.
Custom Colors to Match Your Style
Complete your look by choosing the color that matches your style. You can stand out with bright colors in Orange or Green, or blend in with the sleek Smoke Grey color.
The Lumenier AXII HD 2 Antennas are produced with high quality, low loss materials. The material is key to a good quality antenna, and even more so when it comes to performance. This technology along with precision manufacturing results in a top of the line receiving antenna.
Improvements over V1
- Higher gain for longer range and improved signal penetration
- Wider FOV (Field of View) for better overall coverage
- Improved efficiency for improved signal reception/transmission
- Antennas embedded into custom injection-molded faceplate for better protection
- 15 degrees of up-tilt built into the antenna mount improves signal
Features
- Designed for DJI HD Digital FPV Goggles, form fitting
- Compact low-profile design on your goggles, easy to store and transport
- High gain directional antennas
- LHCP Circular Polarization
- Green, Orange, or Smoke Gray color choices
- Premium quality and performance
- Every antenna is QC checked for guaranteed best performance
Specifications
AXII HD 2 Patch Antenna
- Model: Lumenier AXII HD V2 Patch Visor Antenna
- Frequency: 5.8GHz
- Bandwidth: 220 Mhz
- Gain: 8.4 dBiC
- VSWR: 1:1.1
- Radiation Efficiency: 95%
- Beam Width: 76° H. 76° V.
- Polarization: (LHCP) Left Hand Circularly Polarized
- Connector: RP-SMA (Fits DJI Goggles directly, not to be used on standard SMA)
- Weight: 33g
Micro AXII HD 2 Stubby Antenna
- Gain: 1.9dbic
- Axial ratio: 1.0 (near perfect)
- Bandwidth: 5.3GHz-6.2GHz
- Radiation Efficiency: 99%
- Cross-Polar Rejection: -15 to -30dB (1.9%)
- Beam Width: 360 degrees (omni-directional)
- SWR: <=1.5:1
- Weight: 3.5g
- Connector: RP-SMA
- Works great as both a transmitting or receiving antenna
- Compatible with other styles of 5.8GHz LHCP antennas
- Polarization: (LHCP) Left Hand Circularly Polarized
